Goods lift ISO-MAX 750 / 1000
Goods lift with swing doors serving at floor level
Standard complies to the machine directive 2006/42/EC
Standard basic equipment:
Structure
- Self supporting steel structure
- Made of cold rolled galvanized special profiles
- Pre-installed with guides T 70 x 65 x 9 mm
- Galvanized baffle plates for front side
- Buffer Ø 80 mm
Cabin
- Load capacity 750 — 1000 kg
- Up to 2 loading sides
- With safety gear for accessible rooms under the shaft
- Version A:
Width 1000 mm
Depth 1400 mm
Height 1200 — 2000 mm - Version B:
Width 1275 mm
Depth 1500 mm
Height 1200 — 2000 mm - Cant-off system made of galvanized steel
- On both sides guide shoes including emergency guidance
- Bumper rails
- Balancing devices on the suspension element
- Overload device
Swing doors
- Version A:
Width 1000 mm
Height 1200 — 2000 mm - Version B:
Width 1275 mm
Height 1200 — 2000 mm - Manual oprated
- Made of galvanized steel
- Both hinging sides available (Version A)
- Study plastic door handle
- In accordance to DIN 18090
- Frames made of galvanized steel
- Door locks type-tested by TÜV-authorities
Machine room door
- Version A:
Width 1000 mm
Height 600 mm - Version B:
Width 1275 mm
Height 600 mm - Door leaf made of galvanized steel (double hinged)
- Cam lock
- Frames made of galvanized steel
- Door leaf flush with door frame
Drive unit
- Drive unit with worm gear and with factory oil filling
- Standard motor IP 54
- Disc brake
- Hand wheel
- 3 x 400 V / 50 Hz. according to IEC
- 2 chain wheels for 2 chains 5/8 x 3/8" DIN 8187
(Balancing weights are guided through pipes)
Controller
- Microprocessor control (PLC)
- Control cabinet 600 x 600 x 210 mm (W x H x D)
- Call and send control 24 V
- Safety circuit 48 V
- Pre-wired and clampable
- In the push button box of each landing:
- One call and send button for each floor
Acoustic arrival signal
Location indicator
"OVERLOAD" indicator
"IN USE" indicator - Thermic motor protection
- Main switch
- Machine room light with switch and socket

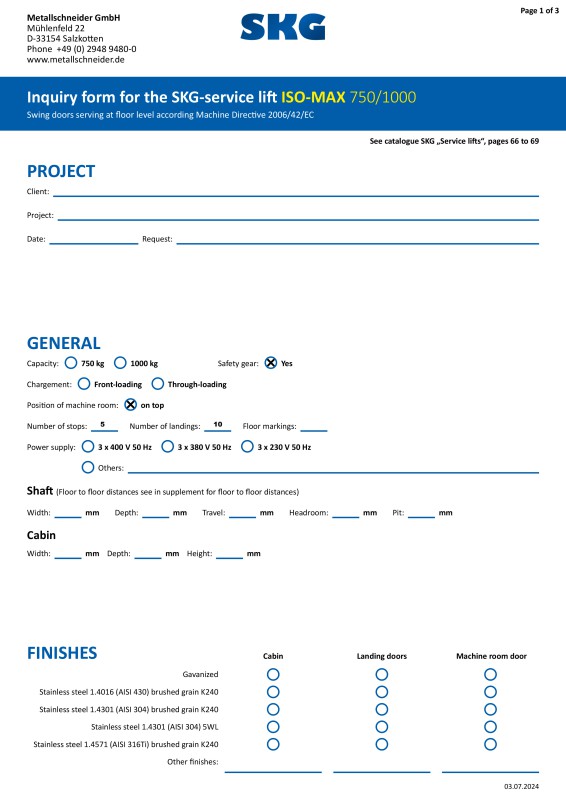

Downloads
