Goods lift ISO-PE easy 750 / 1000
Goods lift with 1 trained person and swing doors serving at floor level
Standard complies to the type examination and the machine directive 2006/42/EC
Standard basic equipment:
Structure
- Self-supporting steel structure
- Made of cold rolled galvanized special profiles
- Pre-installed with guides T 70 x 65 x 9 mm mm
- Galvanized baffle plates for front side
Cabin
- Load capacity 750 — 1000 kg
- Up to 2 loading sides
- With safety gear for accessible rooms under the shaft
- Width 800 — 1500 mm
- Depth 1100 — 1800 mm
- Height 2000 — 2200 mm
- Width, depth and height in 25 mm grid
- Cant-off system made of galvanized steel
- On both sides guide shoes including emergency guidance
- Recessed LED cabin lighting
- Cabin push button box with key switch "Hold-to-run" and prepared emergency call and emergency light
- Bumper rails
- Light grid
- Balancing devices on the suspension element
- Overload device
Swing doors
- Width 800 — 1500 mm
- Height 2000 — 2200 mm
- Width and height in 25 mm grid
- Manual oprated
- Made of galvanized steel
- Both hinging sides available (up to width 1000 mm)
- Study plastic door handle
- In accordance to DIN 18090
- Frames made of galvanized steel
- Door locks type-tested by TÜV-authorities
Machine room door
- Width 800 — 1500 mm
- Height 600 mm
- Width in 25 mm grid
- Door leaf made of galvanized steel (double hinged)
- Cam lock
- Frames made of galvanized steel
- Door leaf flush with door frame
- Secured contact
Drive unit
- Drive unit with worm gear and with factory oil filling
- Standard motor IP 54
- Disc brake
- Hand wheel
- 3 x 400 V / 50 Hz. according to IEC
- 2 chain wheels for 2 chains 5/8 x 3/8" DIN 8187
(Balancing weights are guided through pipes)
Controller
- Microprocessor control (PLC)
- Control cabinet 600 x 800 x 250 mm (W x H x D)
- Dead man control in the cabin (push button box can be activated by key switch)
- Call and send control 24 V
- Safety circuit 48 V
- Pre-wired and clampable
- In the push button box of each landing:
- One call and send button for each floor
Acoustic arrival signal
Location indicator
"OVERLOAD" indicator
"IN USE" indicator - Thermic motor protection
- Main switch
- Machine room light with switch and socket
- Return motion controller

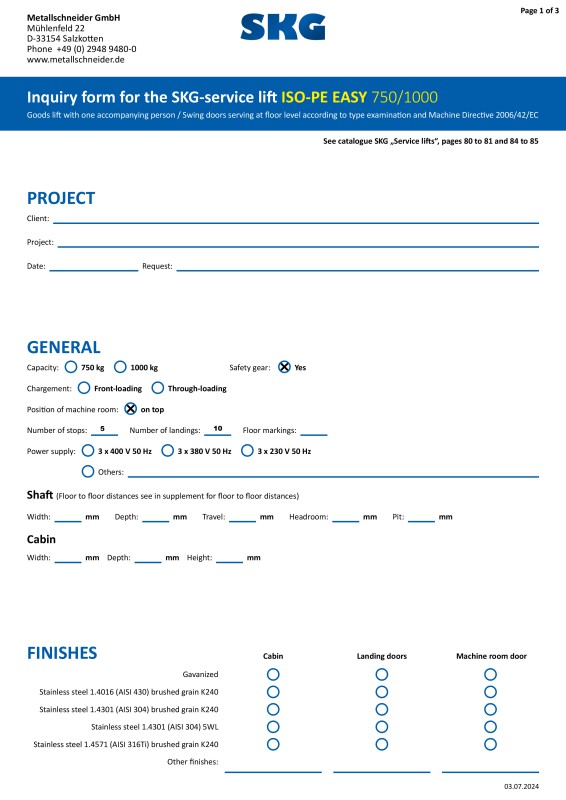

Downloads
